Khitan Fragment from the Liao Mausoleum at Yiwulü Mountain

Last month a brief report on the survey and excavation of the remains of buildings and tombs dating to the Liao dynasty (907–1125), situated on Yiwulü Mountain 醫巫閭山, at a place called Xinli, about 8 km northwest of Beizhen city in Liaoning, was published online in Chinese and English:


Xinli Site

The Xinli site is on the eastern slope of Yiwulü Mountain, between Xinli 新立 and Yingtaogou 櫻桃溝 villages. The site has been surveyed and excavated between 2015 and 2018 (and investigation is still ongoing), and two large-scale tombs have been discovered, one designated M1 (84 m in length) to the southwest of the main buildings, and one designated M2 (44 m in length) to the north of the main buildings. Based on the layout of the tombs and buildings, and the high quality of the artefacts discovered there, the archaeologists suggest that this was an imperial mausoleum from the Liao dynasty.

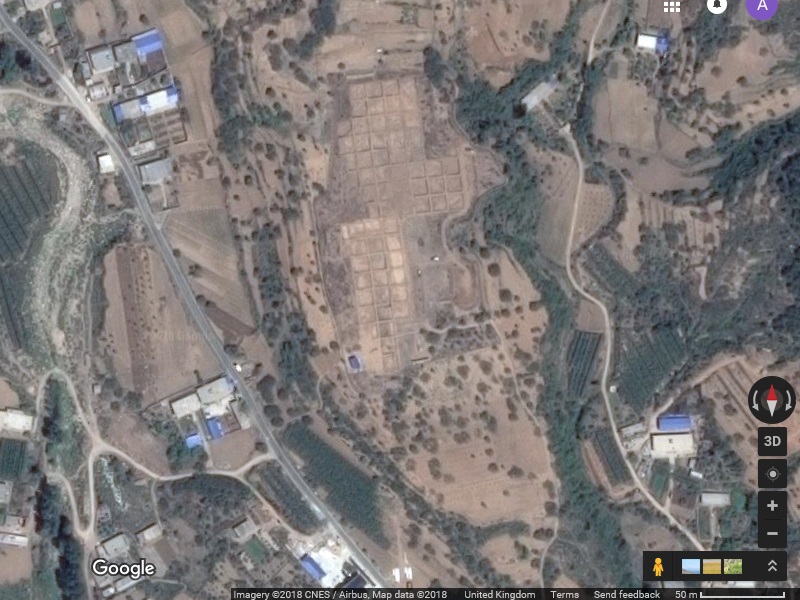

Site of the Xinli excavations

41°39'25" N 121°44'15" E


The History of the Liao records that two imperial mausoleums were built on Yiwulü Mountain: Xianling 顯陵 mausoleum and Qianling 乾陵 mausoleum.

Xianling mausoleum was constructed in 947 for Yelü Bei 耶律倍 (899‑937), who was the eldest son of the first Liao emperor, Abaoji, and King of Dongdan. Although Yelü Bei had been proclaimed crown prince, because he preferred reading and painting to hunting and fighting, when his father died in 926 his younger brother was put on the throne instead of him, and Yelü Bei went into exile. In 947, when Yelü Bei's son became Emperor Shizong, Yelü Bei's body was returned to Liao, and because he had loved Yiwulü Mountain so much when he was alive, Emperor Shizong built a mausoleum for him here. When Emperor Shizong died in 951, he too was buried on Yiwulü Mountain, at a location called West Mountain. No mausoleum name is recorded for Shizong's burial place, so it may have been considered to be part of the Xianling mausoleum.

顯陵者，東丹人皇王墓也。人皇王性好讀書，不喜射獵，購書數萬卷，置醫巫閭山絕頂，築堂曰望海。山南去海一百三十里。大同元年，世宗親護人皇王靈駕歸自汴京。以人皇王愛醫巫閭山水奇秀，因葬焉。山形掩抱六重，於其中作影殿，制度宏麗。州在山東南，遷東京三百餘戶以實之。應曆元年，穆宗葬世宗於顯陵西山，仍禁樵採。

《遼史》卷三十八


Qianling mausoleum was constructed in 983 for Emperor Jingzong of Liao (r. 969–982). His consort, later known as Empress Dowager Chengtian, was also buried at Qianling when she died. According to History of the Liao, the last emperor (r. 1101–1125) died of natural causes in Jin custody 1128, and in 1145 he was buried next to the Qianling mausoleum (the History of the Song tells a different and not very believable story that he was killed in 1156 after a polo match to the death with the deposed last emperor of Song).

[統和元年二月]甲午，葬景宗皇帝於乾陵，以近幸朗、掌飲伶人撻魯為殉。

《遼史》卷十

[統和二十八年]夏四月甲子，葬太后於乾陵。

《遼史》卷十五

[保大五年]八月癸卯，至金。丙午，降封海濱王。以疾終，年五十有四，在位二十四年。金皇統元年二月，改封豫王。五年，葬于廣寧府閭陽縣乾陵傍。

《遼史》卷卷三十


All the other Liao emperors were buried much further north, in modern Bairin Left Banner and Bairin Right Banner in Inner Mongolia, as shown in the map below, so any imperial tomb discovered at Yiwulü Mountain must be either Xianling or Qianling.

Site of Liao imperial mausoleums


The authors of the report on the excavation state that the Xinli site is similar in layout to the Qingling mausoleum where the 6th through 8th emperors were buried, but not similar to the Zuling and Huailing mausoleums where the 1st, 2nd and 4th emperors were buried. For this reason, they suggest that the occupant of the tomb site at Xinli would more likely be the 5th emperor (Jingzong) than the 3rd emperor (Shizong), and therefore the site should be that of the Qianling mausoleum. The fact that the Xinli site contains two large tombs fits with this identification as it is recorded that Emperor Jingzong and his consort were separately buried there. The tomb M2 at the north should be that of Emperor Jingzong, and the tomb M1 to the southwest should be that of Empress Dowager Chengtian. It is also recorded that the last emperor was eventually buried at Qianling, twenty years after the fall of the Liao, but it is unlikely that a magnificent new tomb would have been constructed for a deposed emperor, so he was probably buried in a simple grave.

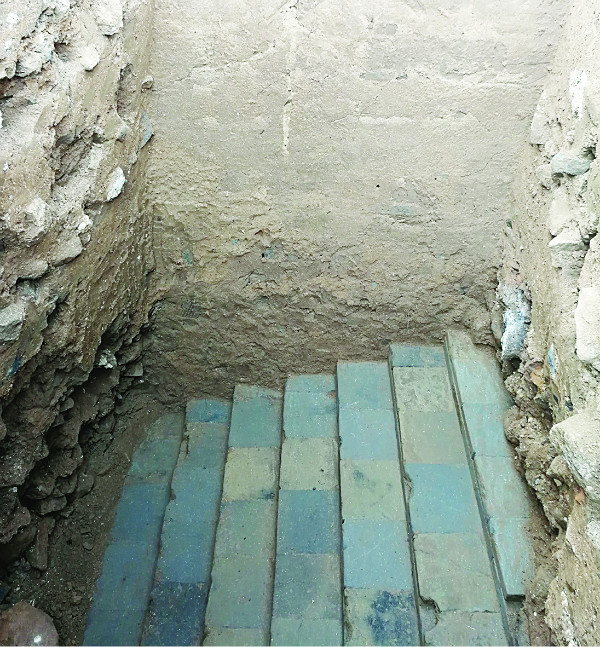

Stepped passageway leading down to the entrance to Tomb M2


Khitan Inscriptions

The only way to be certain of who is buried in the tombs at the Xinli site is if written evidence can be found there, especially epitaphs inscribed on stone that are normally found in imperial or aristocratic tombs of the Liao dynasty. The tombs M1 and M2 have not yet been opened up, but already some important finds have been made on the site. In particular, a number of fragmentary pieces of 'jade' tablets with engraved text have been found on the site of the main hall south of Tomb M2 (the so-called 'jade' is probably actually a type of fine-grained marble). The tablets have holes in them, apparently so that they could be bound together as a 'jade book' (玉册 yùcè), imitating the bamboo books of ancient times. What is most exciting is that some of the stone tablets are engraved with Chinese text, and others are engraved with Khitan Small Script text. The number of stone tablets found has not been made public yet, but as stone is a durable material, there should be a good chance that complete texts can be reconstructed. And if the Chinese and Khitan versions are a direct translation they would be very important in advancing the decipherment of Khitan Small Script. Even if the two versions are not translations (which is frequently the case with pairs of Chinese and Khitan epitaphs), the Khitan tablets will provide invaluable new data for understanding Khitan Small Script and the Khitan language.

The Khitan language was written using two completely different and mutually exclusive scripts, Khitan Large Script [KLS] and Khitan Small Script [KSS] (see The Mystery of Two Khitan Scripts). The use of these two scripts overlapped both geographically and chronologically, and both were used for writing epitaphs and monuments (about 15 KLS and 40 KSS monumental inscriptions are known), so it is difficult to determine when, where and by whom each script was used. However, a cluster of at least eight Khitan Small Script epitaphs have been found in Liao dynasty tombs on or near Yiwulü Mountain (which is not a single peak, but a mountainous ridge, running northeast to southwest, up to a 100 km in length), whereas not a single Khitan Large Script inscription is known from the area. It is therefore no surprise that the stone tablets at Xinli are engraved in Khitan Small Script rather than Khitan Large Script.


Finds of Khitan inscriptions in the vicinity of Yiwulü Mountain

(Distance between E and H is 70 km)


Key:

Other KSS epitaphs of unknown provenience may also come from this area. For example, the Epitaph for Xiao Hudujin 萧胡睹堇 (1091), held at the private Khitan Museum in Bairin Left Banner, and the Epitaph for Xiao Dilu 蕭敵魯 (1114), held at the Ethnic Museum of Inner Mongolia University, may both have been taken from robbed tombs in this area because Xiao Hudujin and Xiao Dilu are close relatives of Xiao Tuguci [D] (Xiao Hudujin is a nephew of Xiao Tuguci, and Xiao Dilu is a nephew of Xiao Hudujin).


Analysis of a stone tablet with Khitan inscription

Fragments of stone tablets from the Xinli site


As far as I know, this is the only publicly available photograph of the stone tablets found at the Xinli site. The left piece shows an inscription in the Khitan Small Script, and the right piece apparently shows the side of the same tablet, with a hole for binding the pieces together. I am looking forward to being able to study the full set of inscribed stone tablets when they are published, but in the meantime here is a brief analysis of the short Khitan Small Script inscription on the left piece (with thanks to Viacheslav Zaytsev for some suggestions).

The inscription comprises three blocks of KSS characters, reading from top to bottom. There are two types of KSS characters:

  1. Characters occuring in isolation are logographic, and generally have a known meaning but an unknown or guessed reading (examples of logographic KSS characters include numbers and calendrical terms). By convention, when transcribing a logographic character, its English meaning is given in all capitals.
  2. Characters which combine together to form blocks (or polygrams) of between two and eight characters are phonographic, with each character having a relatively fixed phonetic value (the actual phonetic value may depend on the surrounding letters, for example a letter could be syllabic "le" or "el" in some contexts or just the consonant "l" in other contexts). The approximate phonetic values of some characters are known, but some readings are little more than guesses, and many readings remain completely unknown. The polygram is read from left to right and top to bottom, with the characters combining together to spell a single word of one or more syllables (often a stem on which a range of suffixes may be appended). By convention, when transcribing a polygram, dots are used to separate the phonetic values of individual characters.

[See this list of readings and meanings of KSS characters from Daniel Kane's The Kitan Language and Script (Brill, 2009). For further information on the Khitan Small Script, and its proposed encoding in Unicode take a look at this document by myself and Viacheslav Zaytsev. Khitan Small Script is scheduled for inclusion in Unicode version 13.0 in March 2020, and at that time I will modify this blog post to use Unicode KSS characters.]

In the case of this fragment, there are three polygrams, the first comprising four characters, the second comprising two characters, and the third comprising two characters. The bottom of the third block is broken off, but we can be sure that there are no more than two characters in this block because of their tallness — if it was a block of three or more characters then the first two characters would be stunted, as is the case for the first block. The inscription is transcribed in the table below, with the polygraphs reformatted into horizontal layout.


KSS Polygrams Numbers Reading Meaning Notes

𘲢𘬜𘱄𘱚

 137-020-261-334 ?.ei.l.gi [unknown]

137 is conventionally transcribed as ren because it looks like the Chinese character 刄 rèn, but its actual phonetic value is unknown, so I transcribe it with a question mark.

261 has a phonetic range of [l] ~ [el] ~ [le].

𘬝𘱦

 021-341 mó.er mother, wife, woman, lady

𘮴𘭢

 307-080 ?.ii [unknown]

The first word, 𘲢𘬜𘱄𘱚 [137-020-261-334] ?.ei.le.gi does not seem to be attested in this form in the known KSS corpus, but the first two characters 𘲢𘬜 [137-020] ?.ei are attested as a word of unknown meaning once in a single inscription, and at the start of several words in several inscriptions:

The final two characters of the first word 𘱄𘱚 [261-334] -[e]l.gi are the feminine form of the causative suffix, corresponding to the masculine form 𘮅𘲲 [098-151] -[a]l.hu. These two suffixes are cognate with the Mongolian causative suffixes -lge ᠊ᠯᠭᠡ and -lɣa ᠊ᠯᠭᠠ.

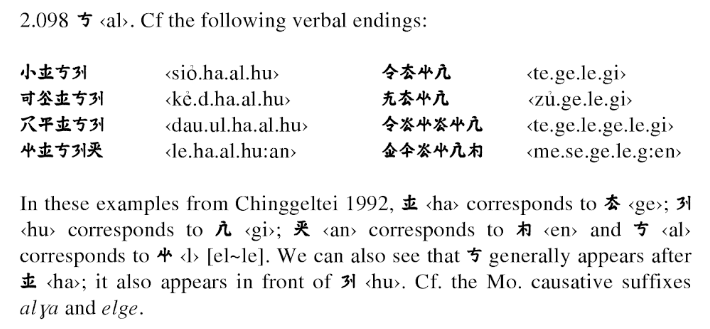

Khitan causative suffixes

Daniel Kane, The Kitan Language and Script (Brill, 2009) p. 46


The second word, 𘬝𘱦 [021-341] mó.er is the common Khitan word for "mother, wife, woman, lady", which frequently occurs in KSS epitaphs.


Part of a rubbing of the Epitaph for Emperor Daozong (1101)

mó.er highlighted in red


The third word, 𘮴𘭢 [307-080] ?.ii is a frequently found word, but its reading and meaning are currently unknown.


We cannot hope to make much sense of a small fragment like this, but it is far from as hopeless is it might have been. Although we have not been lucky enough recognise a name or date on this fragment, we can at least read and understand the middle word mó.er. I very much hope that the rest of the stone tablets found at the Xinli site will be published soon!


Addendum 1 [2019-01-25]

Here is a better photograph of the stone fragment, from a list of the most important archaeological discoveries in Liaoning in 2018 that was published on 12 January 2019. Unfortunately, no photos of any other fragments with Khitan writing from the site have been made public yet ... surely more pieces must have survived!

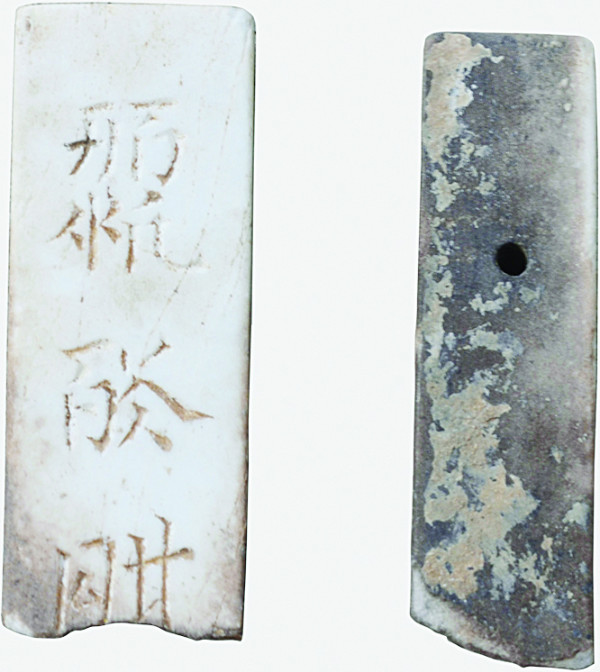

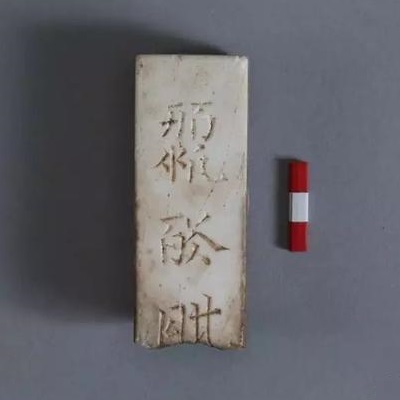

New photograph of the stone fragment with Khitan inscription


For more information on "jade books" see my post on Fragments of Tang Inscriptions from Karabalgasun.


Addendum 2 [2020-01-22]

This is a very low resolution photograph of a fragment of a stone book in Chinese script that was found at the Xinli site, showing the two characters 祈 qí 'to pray' and 社 shè 'altar'.


Photograph of a stone fragment with Chinese inscription

Source: 聚焦“考古中国”重大研究项目进展 (2018-12-22)


Addendum 3 [2023-01-22]

I have now been able to access the official report on the Xinli excavations written by Su Junqiang 苏军强, Wan Xiongfei 万雄飞, et al. which was published under the title 《辽宁北镇市新立遗址一号基址2015～2018年发掘简报》 [Brief report on the 2015–2018 excavations of the No.1 building foundation at the Xinli site near Beizhen city in Liaoning] in Kǎogǔ 考古 [Archaeology] 2020 No. 11, pp. 48–71. This paper includes the photographs and drawings reproduced below of four marble slips, two engraved with Chinese text and two engraved with text in the Khitan small script. It is not clear from the paper whether these are the only four fragments which were unearthed at the Xinli site or whether they are just representative examples of a larger number of fragments that have been found.

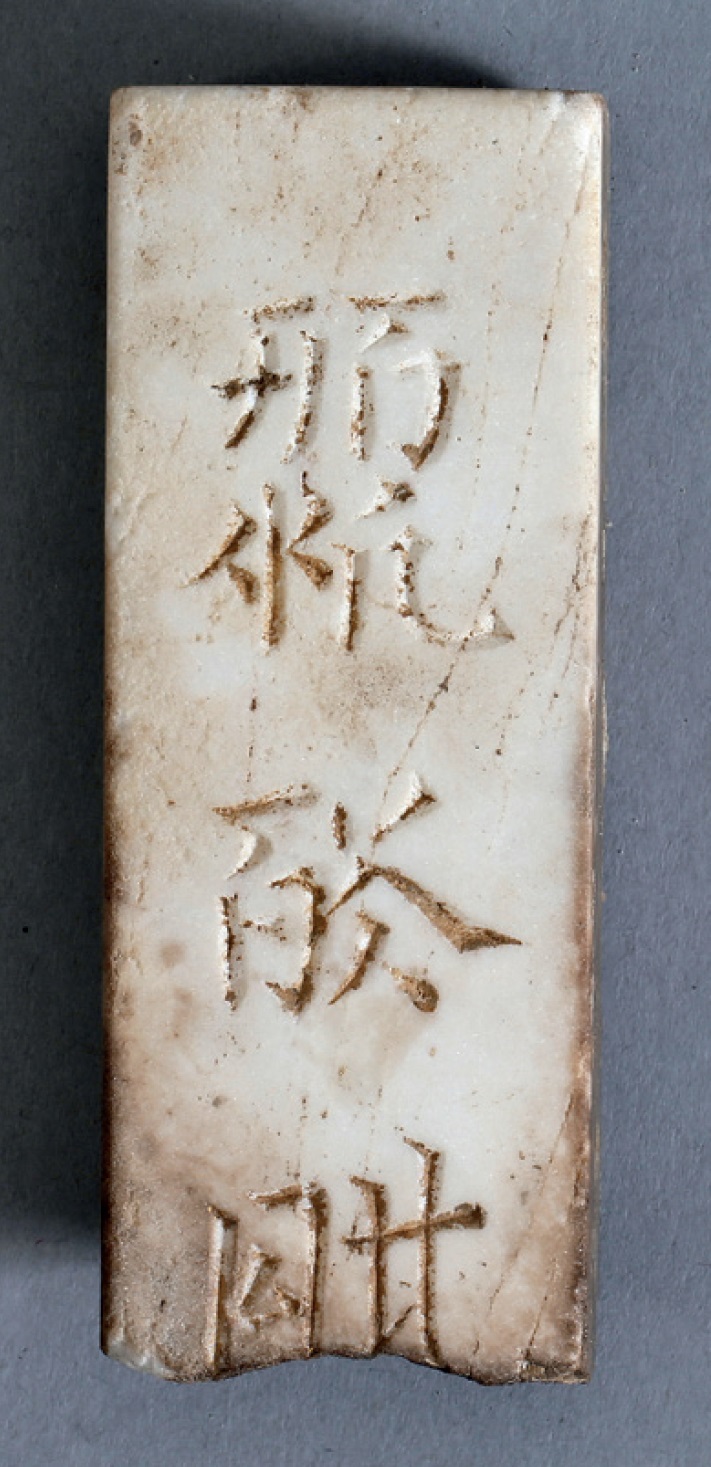

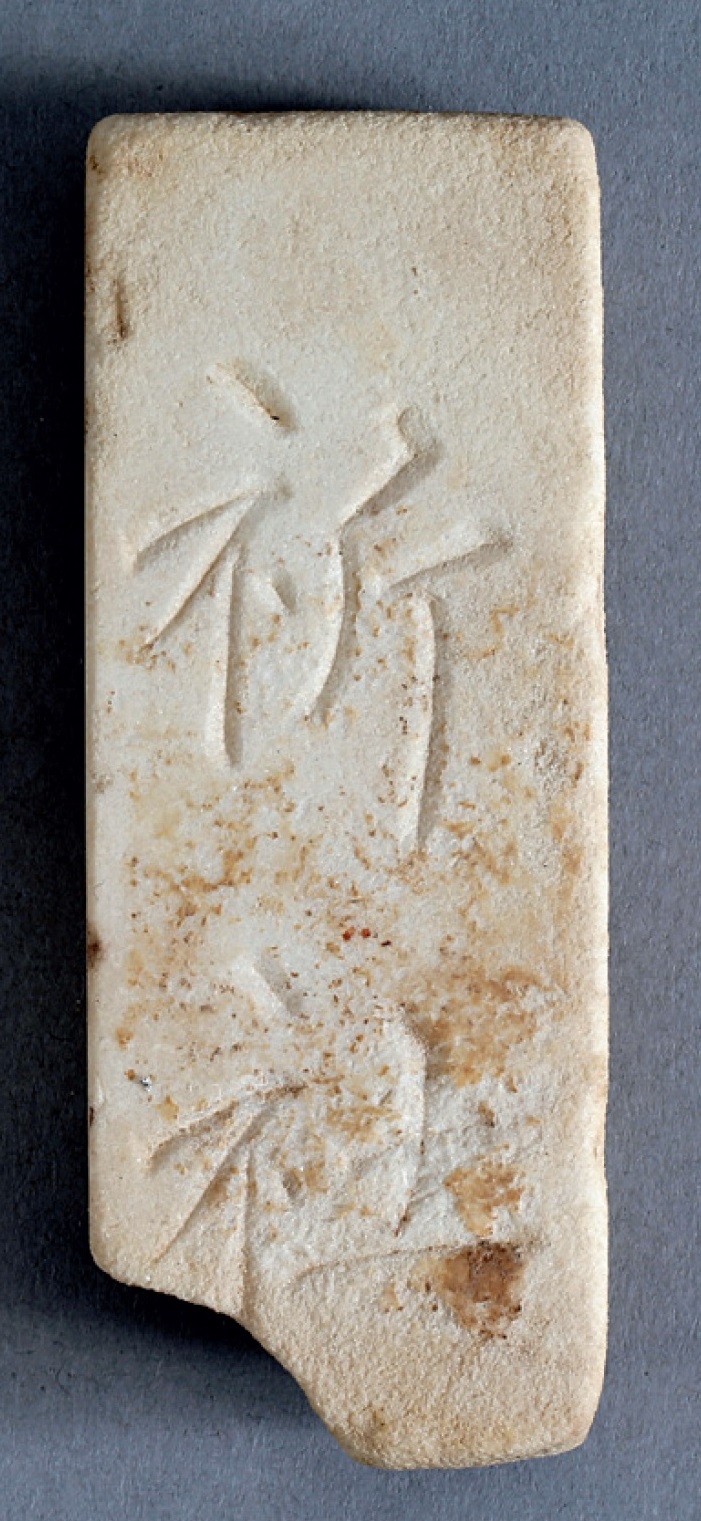

Photographs of two fragments of marble slips

qíshè 祈社 (left) and 𘲢𘬜𘱄𘱚 𘬝𘱦 𘮴𘭢 (right)

Source: 《辽宁北镇市新立遗址一号基址2015～2018年发掘简报》 Figs. 50 and 51

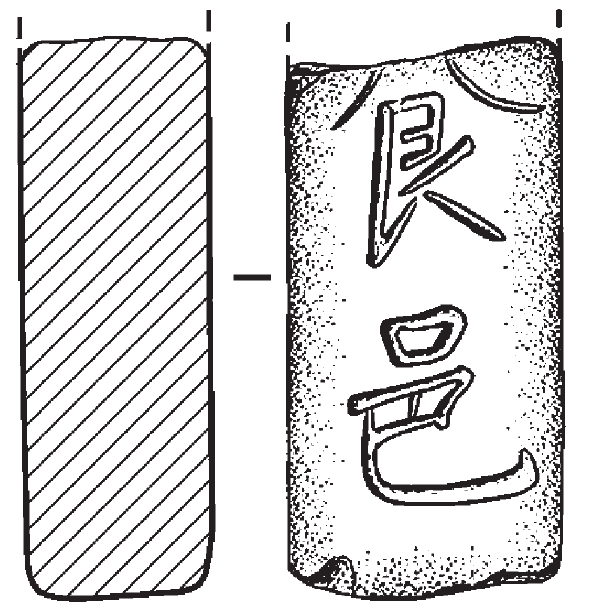

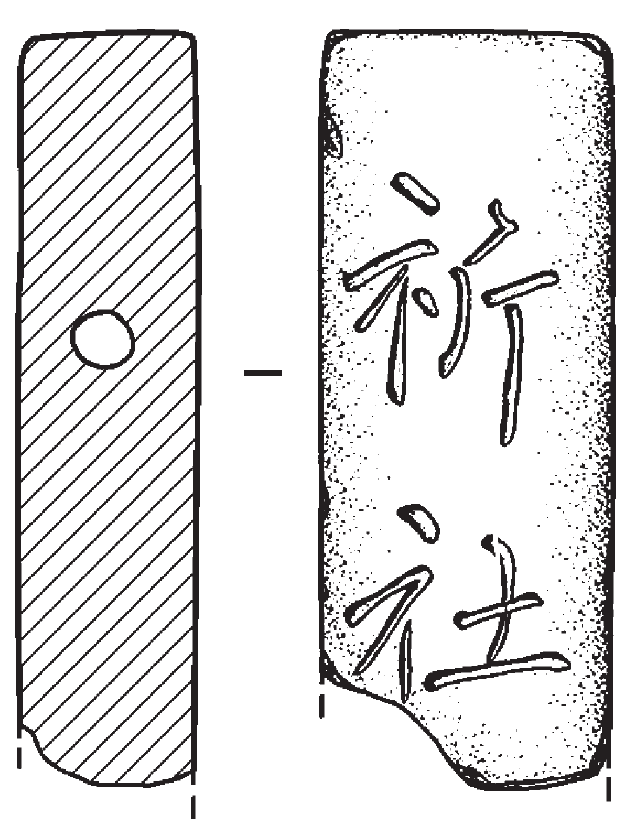

Drawings of the two fragments engraved with Chinese text

qíshè 祈社 (left) and shíyì 食邑 (right)

Source: 《辽宁北镇市新立遗址一号基址2015～2018年发掘简报》 Fig. 48 nos. 10 and 12

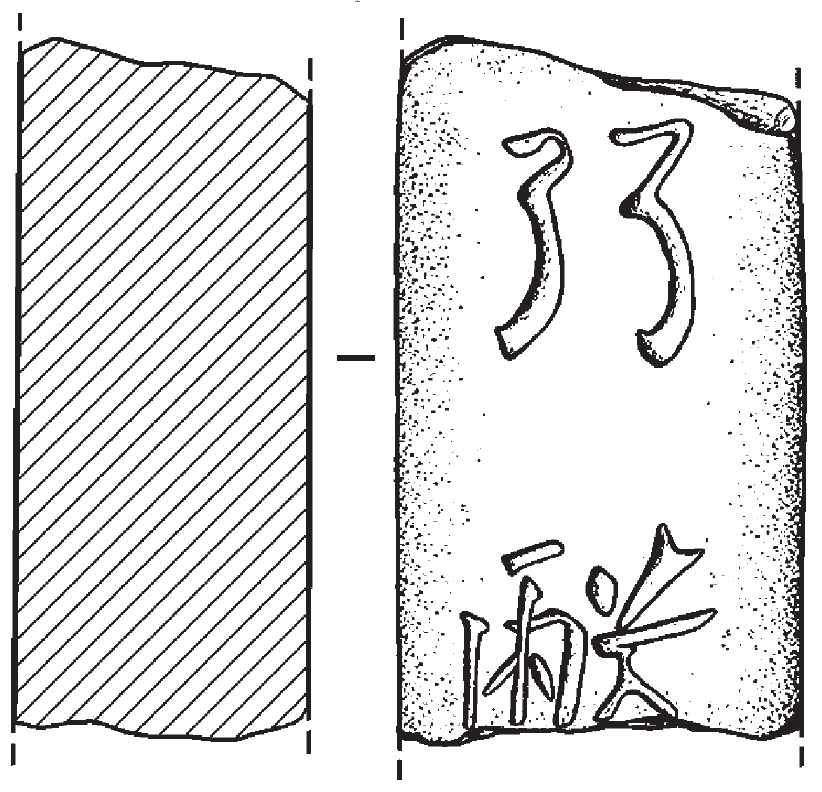

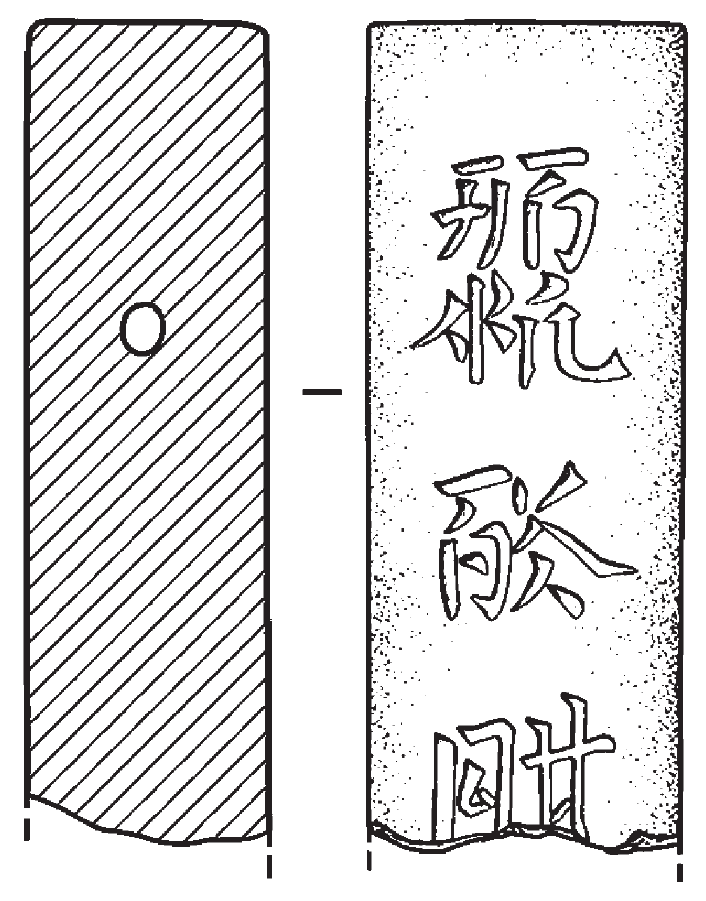

Drawings of the two fragments engraved with Khitan text

𘲢𘬜𘱄𘱚 𘬝𘱦 𘮴𘭢 (left) and 𘲭 𘬚𘱤 (right)

Source: 《辽宁北镇市新立遗址一号基址2015～2018年发掘简报》 Fig. 48 nos. 11 and 5


I discuss these fragments in detail in a forthcoming paper (Two recent discoveries of fragments of Khitan inscriptions) which expands upon my two Khitan blog posts of this year (this blog post and a post on the ink inscriptions from the tomb of Yelü Pugu), and corrects some errors of interpretation.


Last modified: 22 January 2023
